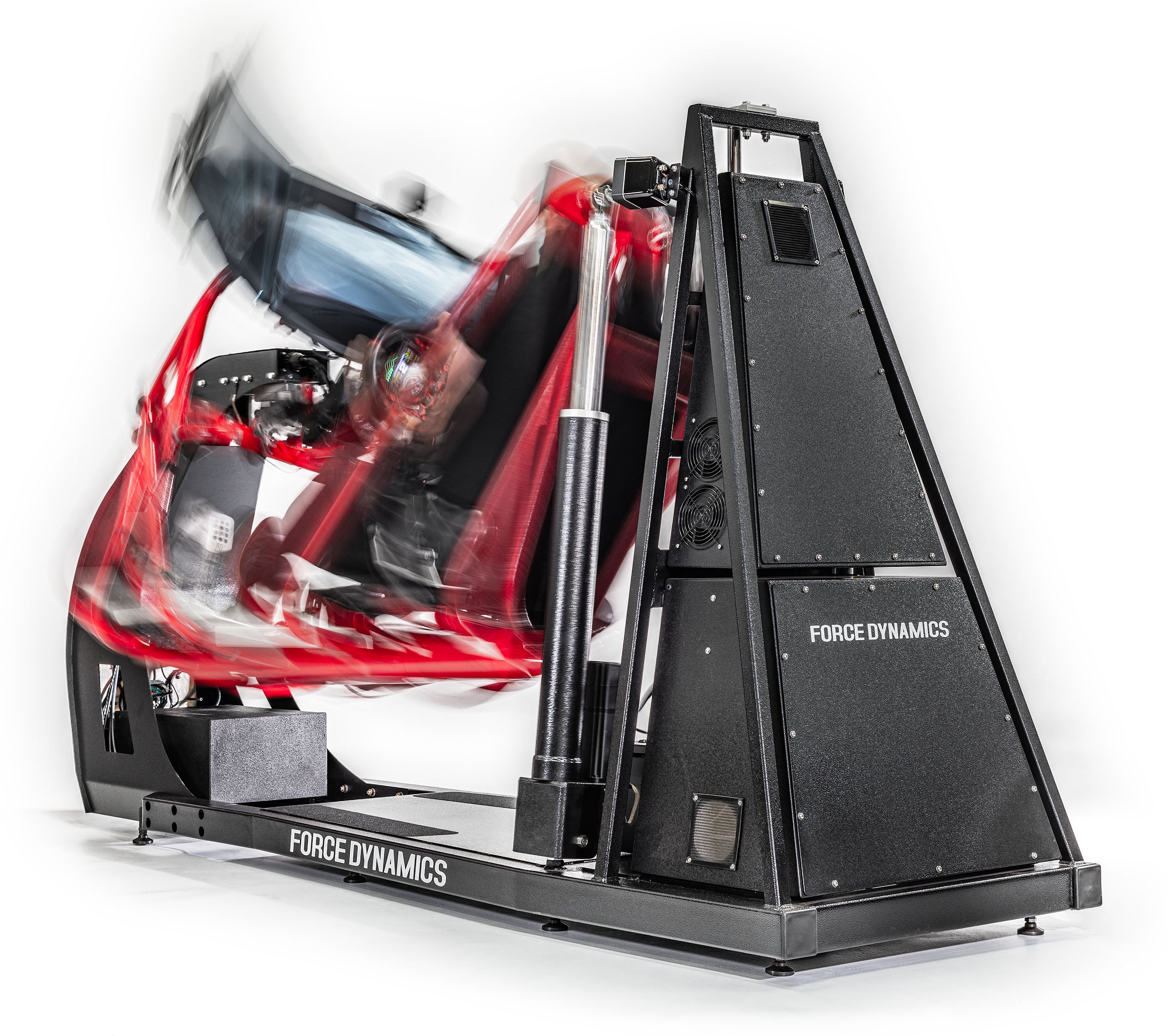

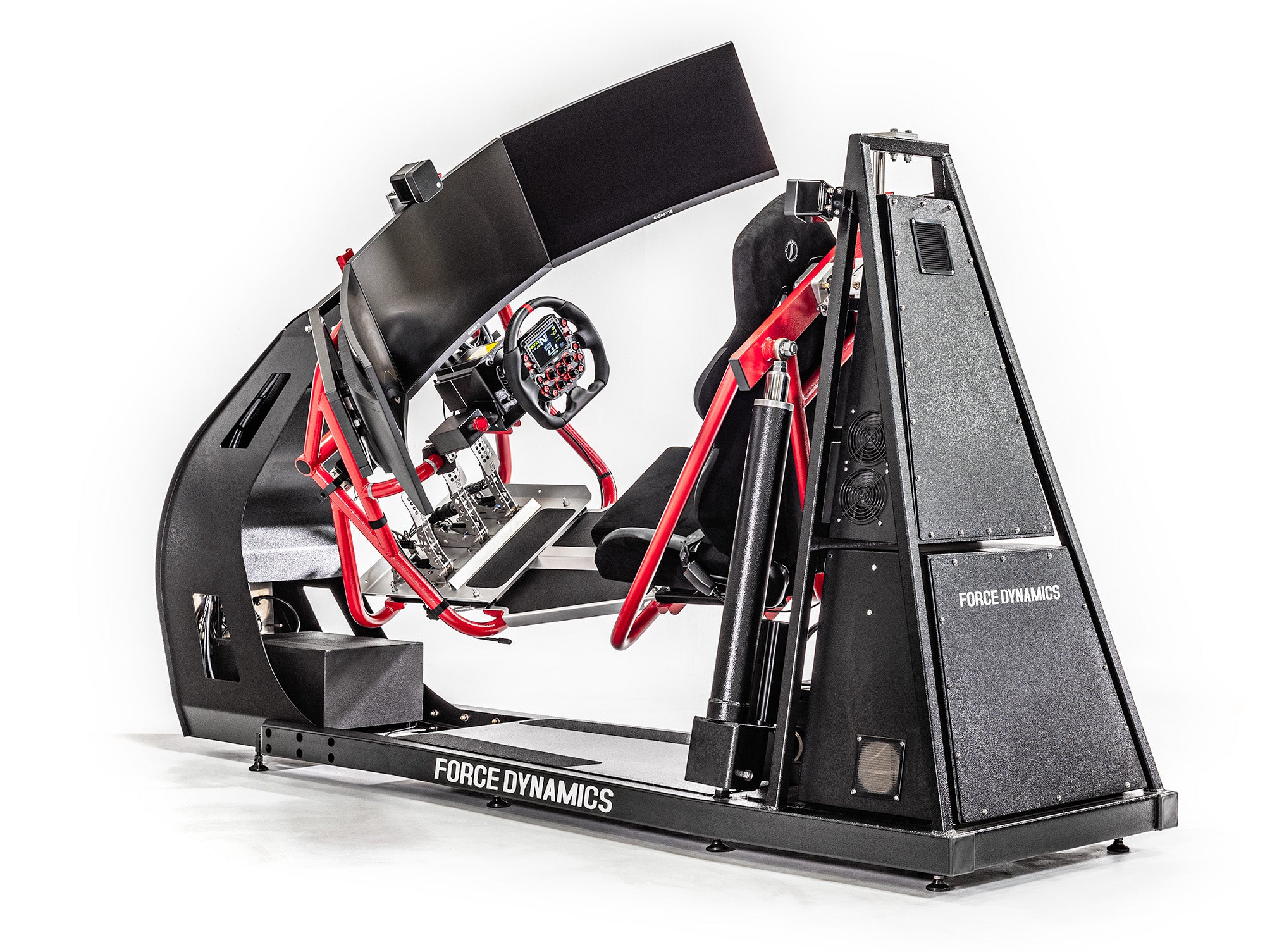

Force Dynamics 202 Motion Simulator
Professional-grade motion in a compact footprint—engineered to deliver real g-force cues you can feel, lap after lap.
Starting at $29,500 (bare platform) · $41,900 (turnkey)
Request Pricing & InfoWhy choose the 202?
- True load cues: Over ±30° roll range delivers convincing cornering, braking, and acceleration sensations via your inner ear.
- Hybrid multi-axis geometry: Two actuators act like a virtual 5-axis system—roll + sway, large-range heave, and induced surge for acceleration/braking cues.
- Dominant dynamics: Transient response and actuator acceleration far exceed typical four-post or seat-mover systems for clearer, earlier cues.
Compact. Capable. Complete.
The 202 fits through standard doors yet delivers the same engineering pedigree as larger platforms—ideal for enthusiasts, sim centers, and R&D.
Request a tailored recommendationQuick specs
| Motion System | Two-actuator hybrid; behaves like multi-axis (roll/sway, heave, induced surge) |
|---|---|
| Roll Range | More than ±30° (head-level center of rotation for high-fidelity lateral load feel) |
| Form Factor | Compact; fits through a standard interior door fully assembled |
| Power | 120/240 VAC, 50–60 Hz (turnkey configuration) |
| Use Cases | Residential enthusiasts, commercial sim centers, training & research |
Turnkey package includes ($41,900)
- Triple curved 27″ LCD displays
- Moza R16 wheelbase + RS wheel rim
- Heusinkveld Sprint pedals
- Integrated gaming PC
- Corbeau Forza seat
- 500W 2.1 audio (300W sub + satellites)
- 120/240 VAC, 50–60 Hz power
Prefer bare platform?
202 motion platform only: $29,500
Popular upgrades
- Triple curved 32″ LCD$1,500
- Triple curved 32″ OLED (incl. GPU upgrade)$4,850
- HTC Focus 3 VR$2,100
- Simucube Sport + MOMO rim$1,200
- Simucube Sport + GSI GT-MAX32$1,900
- Simucube Pro + GSI GT-MAX32$2,100
- Simagic DS-8X H-pattern shifter + mount$650
- Heusinkveld Ultimate pedals$1,000
Audio & seating options
- 5.1 audio$500
- Headphones (add)$350
- Headphones (swap; deletes onboard audio)−$300
- Corbeau Forza seat (Alcantara)$100
- Corbeau A4 seat$300
- Keyboard tray$250
Built for uptime
- Industrial components: Shared with the higher-duty 301/401cr platforms.
- Calculated MTBF: Actuators ~100,000 h; front pivot ~50,000 h; rod ends/bushings 50,000+ h.
- Serviceability: Most parts are plug-and-play; typical swap times 20–60 minutes.
- Actuator & motor ~30 min
- Servo amplifier ~20 min
- Front pivot ~30 min
- Rod ends/bushings <30 min
- PC 1–2 h · Screen 20 min
Why Force Dynamics
Pioneers since 2005; first compact high-performance platform (2005), large-range rotation (2008), and continuous yaw (2010). Systems deployed worldwide with clients including Microsoft, Boeing, Ford, and leading universities.
Frequently asked questions
How do purchases work?
We’re an authorized Force Dynamics partner. Submit the form here and we’ll connect you directly to Force Dynamics to confirm configuration and finalize purchase.
Lead times & installation
Lead times vary by configuration. Delivery and on-site setup can be arranged; we’ll coordinate details during your consult.
Power requirements
Turnkey systems support 120/240 VAC, 50–60 Hz. We’ll confirm the best setup for your location.
Warranty & support
Industrial-grade components with long service life; parts are plug-and-play swappable. Warranty and support options are provided by Force Dynamics.
